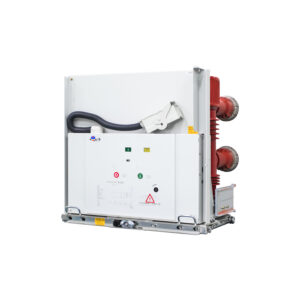

12kV Indoor Vacuum Circuit Breaker

The VS1 series is the latest indoor high-voltage vacuum circuit breaker, suitable for substations, power plants, petrochemical plants and other engineering projects that require frequent operation.

The VS1 series is suitable for the electrical facilities in three-phase AC current system with rated voltage of 3.6~24kV and frequency of 50/60Hz for controlling and protecting equipment.With the latest-generation of modular spring operating mechanism, the product has passed M2/C2/E2 class tests. Both air insulated (with epoxy resin) and solid sealing pole (with automatic pressure gelation technology) types are available.
